AirCurve 10 BiLevel Machine with HumidAir, ResMed

AirCurve 10 BiLevel Machine with HumidAir, ResMed

Product Features:

• Vsync Technology monitoring the user leaks during the night and compensate the delivered pressure to maintain the effectiveness of the therapy.
• Ti Control it’s a function that gives to user physician to control the minimum and maximum time length of inhalation. Ti Control also includes the function of Trigger and Cycle which one adjust the sensitivity of the breathing. (important note, this device DOES NOT have a backup rate setting and it’s not a BiLevel ST device).
• SmartStart feature enables the auto start/stop of the pressure when the device detects a breathing into the mask.
• AutoSet with Easy-Breath Technology feature along with EPR make the breathing through an APAP feel natural, Easy-Breath offers smooth pressure waveform during the pressure increase, the received pressure is the lowest necessary to have an unrestricted airway, as a benefit of it the iterate at 24dBA at pressure 10cmH2O.
• Mask fit feature is a useful effective tool to check the proper fitting of the mask.
• Built-in HumidAir humidifier, one solid device
• ClimateLineAir heated tube(optional).
• Light Sensor reading the room light and adjust automatically the brightness of the screen for best display viewing.
• LCD Display with my Options for viewing and adjusting your personal parameters such as Ramp Time, Humidity level, Pressure Relief, running a Mask Test, SmartStart and some of the recorded data such as usage Hours, Mask Seal, AHI
• The wireless modem automatically transfers the data of treatment to your physician.
• AHI, CSA and chayne-stokes period(indication only).

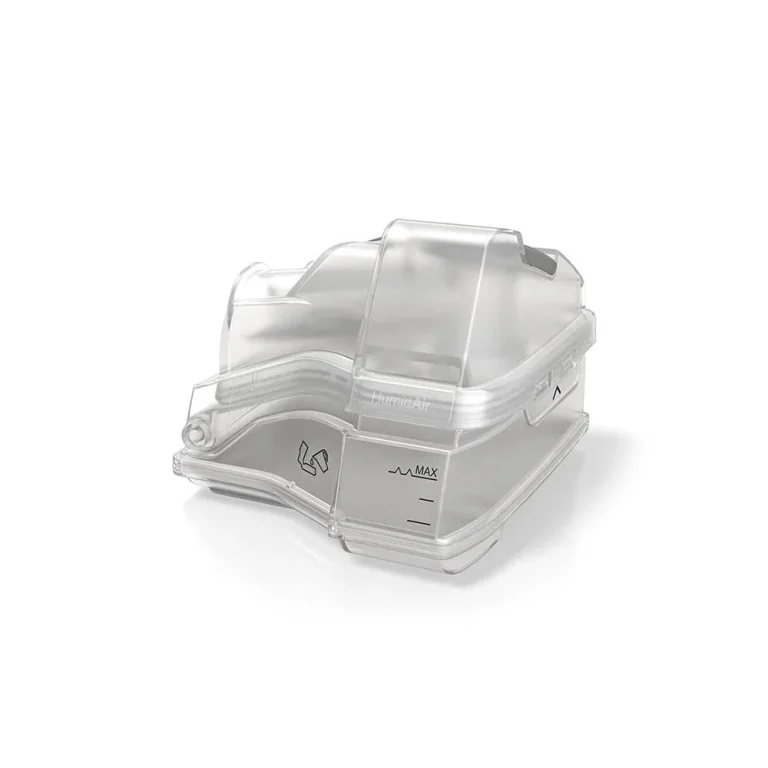

• HumidAir Water Chamber(optional).

Package Including:

AirCurve 10 BiLevel Machine
SlimeLine Tubing
Carry Case
Disposable Filter
User Manual(EN)
SD Memory Card
Power Supply(Euro Power Cord)
HumidAir Water Chamber Cleanable(optional)

Technical specifications:

Class II, Type BF, ingress protection IP22:  IEC 60601-1:2005 classification
AC input: 100-240V, 50-60Hz Class II, DC output 24V 3.75A
Modes: Spontaneous, CPAP
Pressure Level: 4 cmH2O to 25 cmH2O
Typical Power Consumption: 53W
Dimensions: 116mm x 255mm x 150mm
Sound: 26.6 dBA ISO 17510-1:2007, 34.6 dBA ISO 17510-1:2007
Water Capacity: 380ml
Aircraft use: Meet the FAA regulations according to the requirements of RTca/DO-160, section 21 category M) for all phase
Supplement Oxygen: maximum 4 l/min
Wireless module: 2G GSM
FAA Approved
Made By ResMed
