Nox A1s Portable Polysomnography Machine, Nox Medical
19000,00 €
The Nox A1s is a small, lightweight Polysomnography device that shows reliable, high-quality signals and is designed for an easy hookup experience and patient comfort. The Nox A1s PSG System has dual-purpose flexibility for in-lab and ambulatory sleep studies.
Available on backorder
Description
Nox A1s Portable Polysomnography Machine, Nox Medical
The Nox A1s PSG system is a true Hospital-to-Home sleep diagnostic system with a wireless design and revolutionary versatility. The new Nox A1s system is a more evolved solution, able to perform level I, level II, and level III sleep studies to test and diagnose more diverse patient populations.
Product Features:
- With the Nox A1s the clinician has all the necessary channels satisfying the AASM criteria for in-lab PSG studies.
- Built-in sensors for snoring, EKG, EMG & EEG.
- Refined Nox RIP technology with 200Hz sampling frequency can be used as a primary flow measurement.
- The improved Bluetooth platform, BLE 5.0, facilitates lower energy consumption and extends the battery life for multiple night studies.
- Cutting Edge analysis in Noxturnal Software empowered by artificial intelligence.
- Diagnostic System A1s designed for adult and pediatric patients. The A1s are intended to be used within the pediatric age group from 2 years and up. The A1s capability to add channels along with the child being studied in their bed allows a customized personal approach for a successful pediatric sleep study.
- Dual-purpose capability to perform in-lab and at-home sleep testing.
- Small and lightweight PSG recorder designed with patient comfort in mind.
- High-quality signals both in Type I in-lab setting and Type II home unattended setting.
- Complete PSG system with integrated RIP and PTAF that fits in the palm of your hand.
- Built-in redundancy and advancements in technology integration for low failure rates.
- Nox A1s can be used for patients greater than two years of age.
Package Including:
- A1s Recorder Machine
- Nox Abdomen Cable
- Nox RIP belts Disposable, Medium – 2 sets

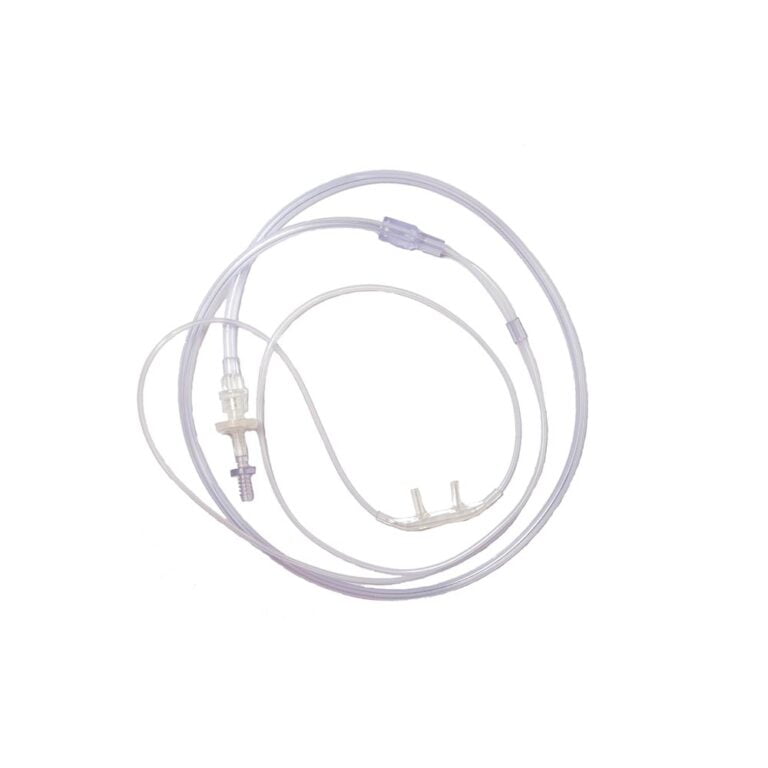

- Nox Cannula with Filter – 2 pieces
- Nox Snap-on Double Lead Black 148/150 cm (58/60 in)
- Nox A1 EEG Head Cable 90 cm (35 in), Adult
- Nox A1 EEG 5 Lead Gold Electrode Cable – 2 pieces
- Nox Snap-on Double Lead Orange 50/100 cm (20/40 in)
- Nox Snap-on Double Lead Grey 148/150 cm (58/60 in)
- Nox Snap-on Double Lead Black 148/150 cm (58/60 in)
- USB-C Cable
- Nox Carry Case
- Nox Lid key
- Noxturnal CD
- AA Battery – 2 units
- AAA Battery – 2 units
Advanced Technology:
| High-quality signals for Type I in-lab setting. | Pressure from nasal and mask cannula. |
| 10 unipolar inputs for EOG and EEG. | Position and activity from the built-in 3D acceleration sensor. |
| 3 unipolar EMG sub-mental inputs. | Integrated Nox RIP Technology (calibrated). |
| 4 configurable bipolar inputs (Thermistor, ECG, EMG). | Pulse, SpO2, and pleth waveform from a Bluetooth® enabled oximeter. |
| Sound from a built-in microphone. | Minimum of 10 hours recording time with a disposable alkaline battery. |
Technical specifications:
| Signal Specifications: | |
| Available Signals: | Thorax and Abdomen RIP, Nasal pressure/Mask pressure, Snore Signal, Audio and snoring channel, 13 unipolar channels, two bipolar channels, Position, Activity, Sp02, pulse, plethysmography, and more. |
| Unipolar Channels: | 13x Unipolar Channels – Touch proof connector DIN 42-802, ±3.2mV input range < 1 µVrms noise, 512 kHz sampling rate |
| Bipolar Channels: | 4x Bipolar Channels Keyhole connector, ±1024mV input range, < 3 µVrms noise, 512 kHz sampling rate, 24-bit ADC |
| Flow/Pressure Signal: | 2x RIP Channels Thorax and abdomen respiratory inductance plethysmography, 200 Hz Sampling, 1x Flow/Pressure Channel -5cmH20 to +50cmH2O input pressure range, DC-80 Hz, <1 mmH2O noise |
| Activity/Position Signals: | Internal 3 axes, ±2 g |
| Sound Signals: | 1MHz sampling, internal 8 kHz bandwidth |
| Wireless Interface: | Bluetooth® V5.0 Low Energy – wireless interface for external devices |
| Ambient Light: | 1 Hz |
| Performance Specifications: | |
| Storage Capacity: | 4 GB internal memory |
| Recording Time: | 20-30 hours with a new lithium battery |
| PC Communications: | USB 2.0 hi-speed |
| Physical Specifications: | |
| Power Source: | One 1.5V AA battery during recording; Host PC USB during data download |
| Battery Type: | Alkaline primary, Lithium primary, nickel-metal hydride rechargeable (NiMH) |
| Battery Cover: | Tamper-proof and locked |
| Device Dimension: | 82 mm W x 62 mm H x 26 mm D |
| Weight: | 92 g (120g with battery) |
| Display: | OLED-dimensions 19 x 35 mm (0.75 x 1.38 in), resolution 128 x 64 dots |
| USB 2.0 Connection: | USB Type C |
PC Requirements:
| Minimum PC Requirements: | Windows 8 and higher Processor: X64 based Intel or AMD, 1.7 GHz or faster 2GB RAM, 4 GB of free disk space Resolution: 1024 x 768 or higher |
